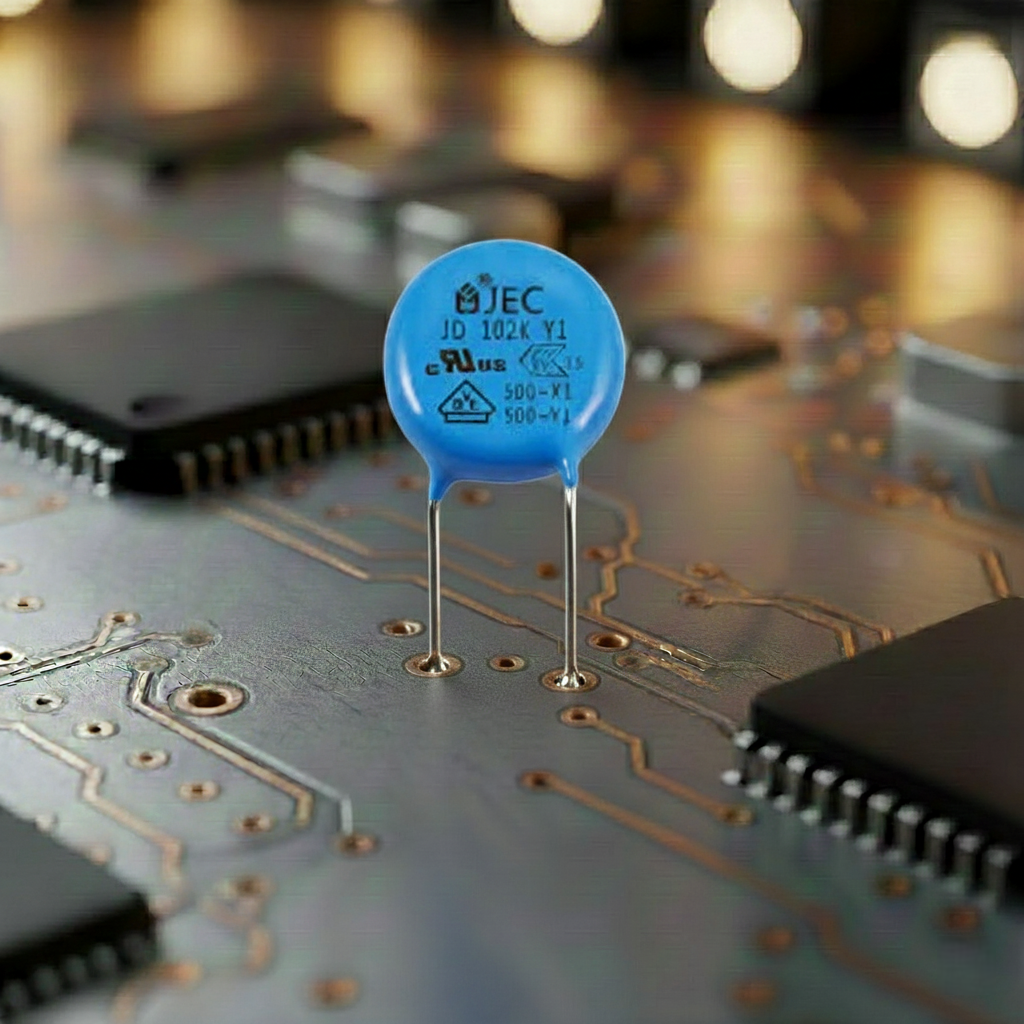

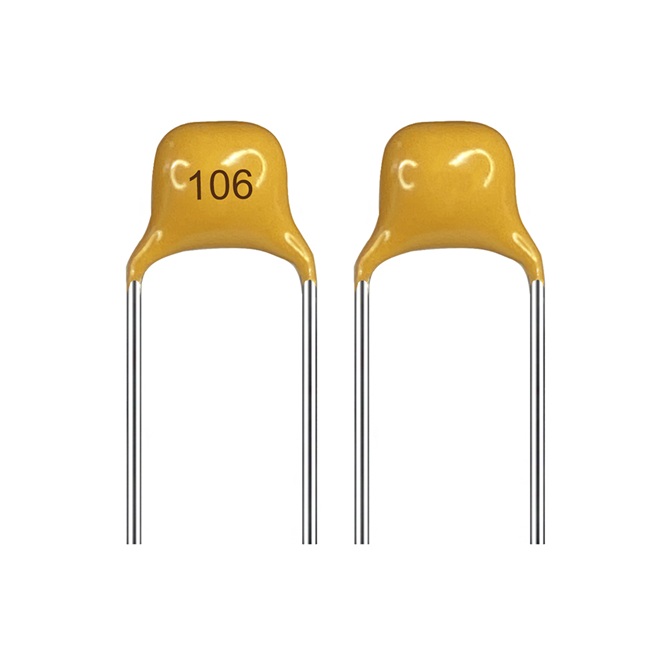

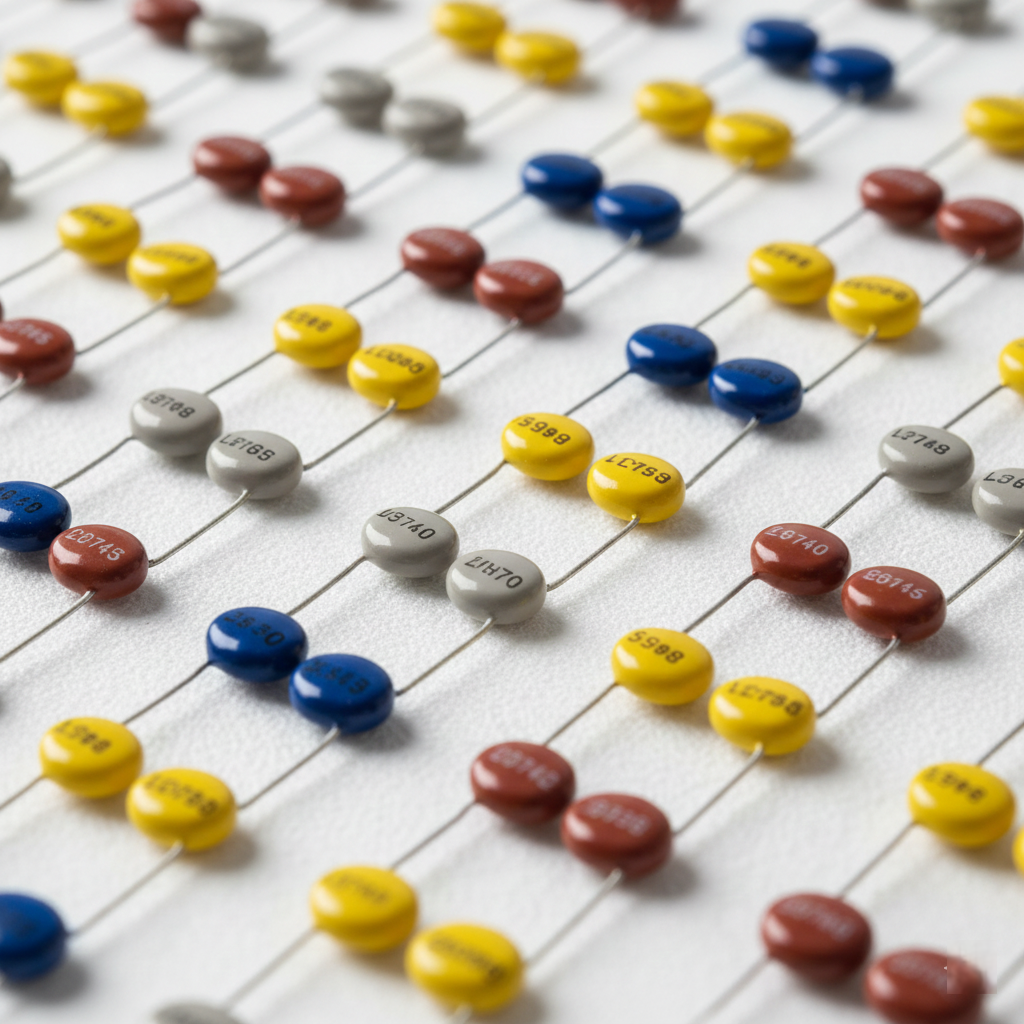

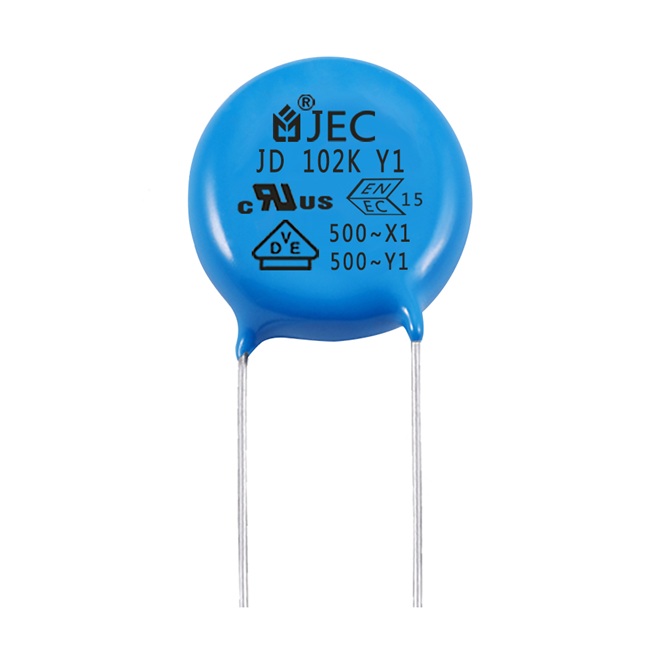

Ceramic Capacitor

Key Features

• Non-Polarized Construction: No polarity constraints; safe and easy to install in any orientation.
• High Frequency Performance: Low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) make them superior for high-speed signal paths.
• Thermal Stability: Designed to maintain consistent capacitance across a wide temperature range.
• Compact Form Factor: High capacitance density allows for significant space-saving on your PCB.
• Rugged Durability: Excellent moisture and shock resistance with flame-retardant epoxy coating.

Technical Specifications

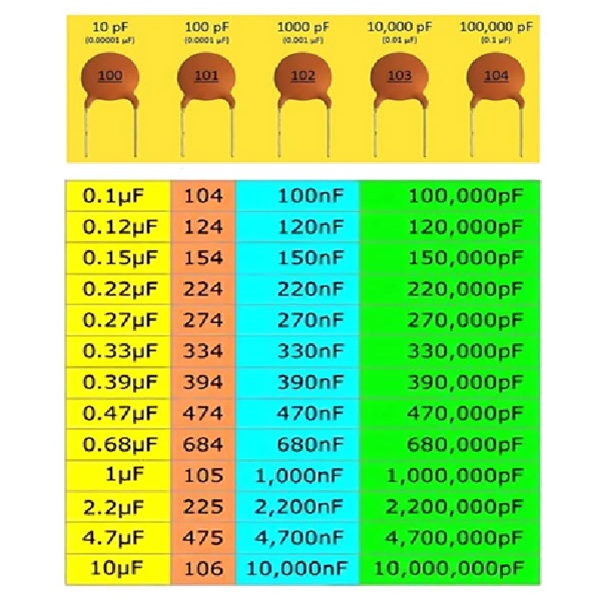

Capacitance Values        1pF to 10µF (Standard E-series values)

Voltage Ratings               16V, 25V, 50V, 100V, up to 1kV (High Voltage)

Tolerance                         ±5% (J), ±10% (K), ±20% (M)

Dielectric Types               NP0/C0G (Ultra-stable), X7R (Stable), Y5V (General)

Form Factors                   Through-Hole (Disc), SMD (0402, 0603, 0805, 1206)

Operating Temp             -55°C to +125°C (Dependent on Dielectric)

Common Applications

• Decoupling & Bypassing: Placed near IC power pins to filter out high-frequency noise and prevent voltage drops.
• Filtering: Used in audio and radio frequency (RF) circuits to block unwanted frequencies or smooth signals.
• Tuning & Oscillators: Pairing with inductors in resonant circuits for radio and communication equipment.
• Data Lines: Protecting data transmission by suppressing electromagnetic interference (EMI).
• Snubber Circuits: Absorbing voltage spikes in switching power supplies to protect sensitive components.
