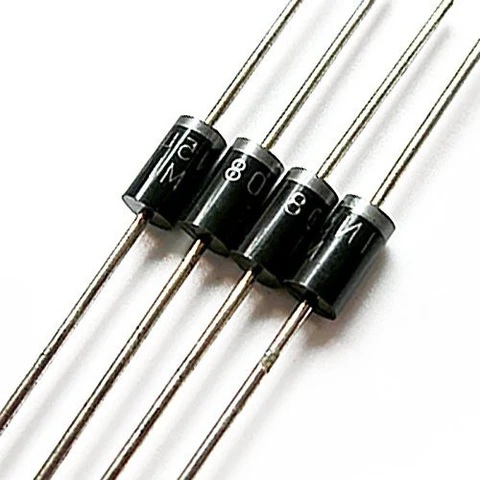

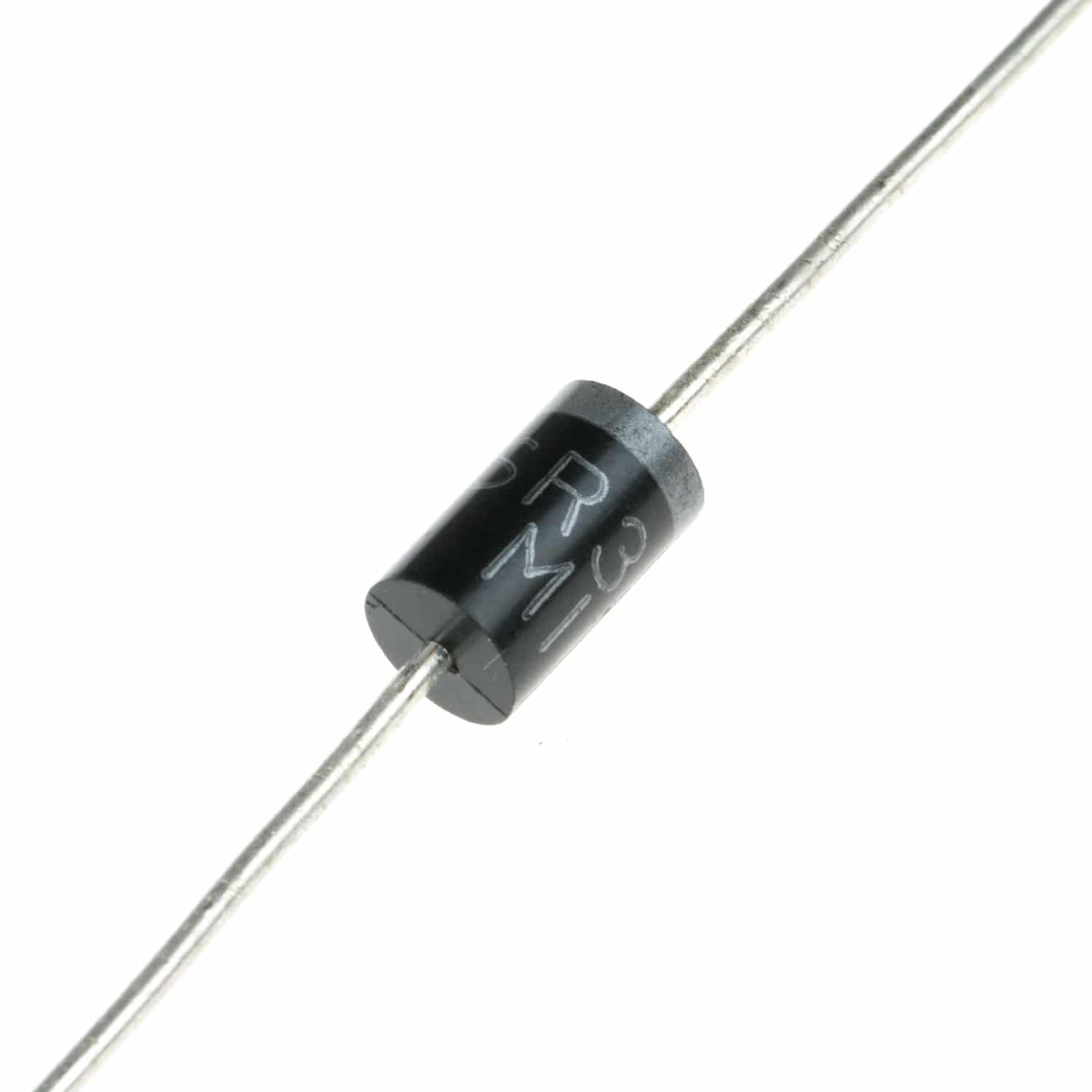

Diode

Key Features

• Unidirectional Control: Effectively prevents reverse current flow to protect sensitive components.
• Low Forward Voltage Drop: Minimizes power loss and heat generation during operation.
• High Surge Capability: Built to withstand momentary spikes in current without failure.
• Fast Switching Options: High-speed signal diodes available for rapid data and RF processing.
• Standardized Packaging: Available in industry-standard through-hole (DO-41) and SMD formats for easy soldering.

Technical Specifications

Peak Repetitive Reverse Voltage             50V, 100V, 400V, 1000V (Standard)

Average Forward Current                         100mA (Signal) to 1A, 3A, or 6A (Rectifier)

Forward Voltage Drop                               ~0.7V (Silicon), ~0.3V (Schottky), ~1.1V

Package Types                                             Through-Hole (DO-41, DO-15, DO-201AD)

Reverse Recovery Time                              Standard (Rectifiers) or Ultra-Fast

Operating Temperature                            -65°C to +175°C

Common Applications

• Rectification: Converting AC (Alternating Current) from wall adapters or transformers into DC (Direct Current).
• Reverse Polarity Protection: Preventing circuit damage if a battery or power supply is connected backward.
• Flyback/Freewheeling Diode: Protecting transistors and microcontrollers from voltage spikes caused by inductive loads (motors, relays, and solenoids).
• Voltage Clamping: Limiting voltage levels to protect sensitive inputs from spikes.
• Logic Gates: Creating simple OR/AND logic circuits in DIY electronics.
