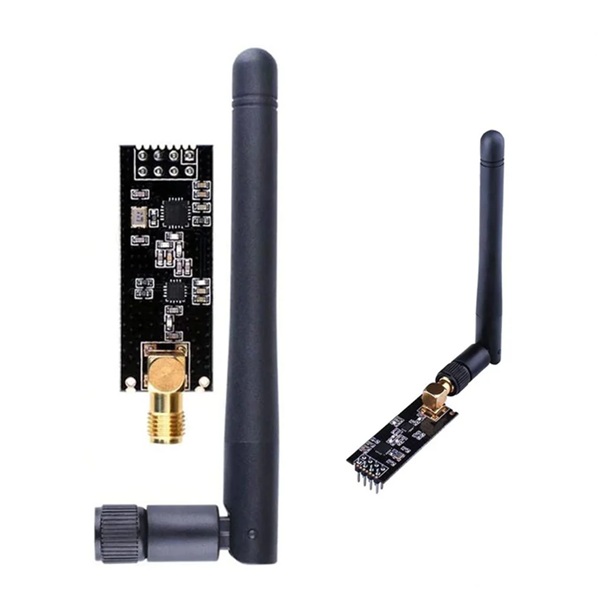

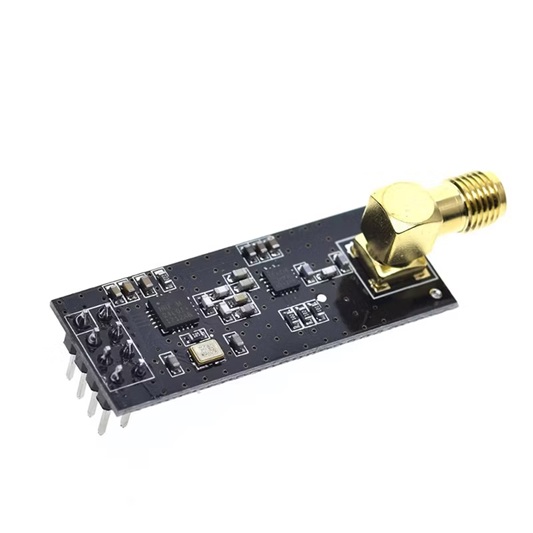

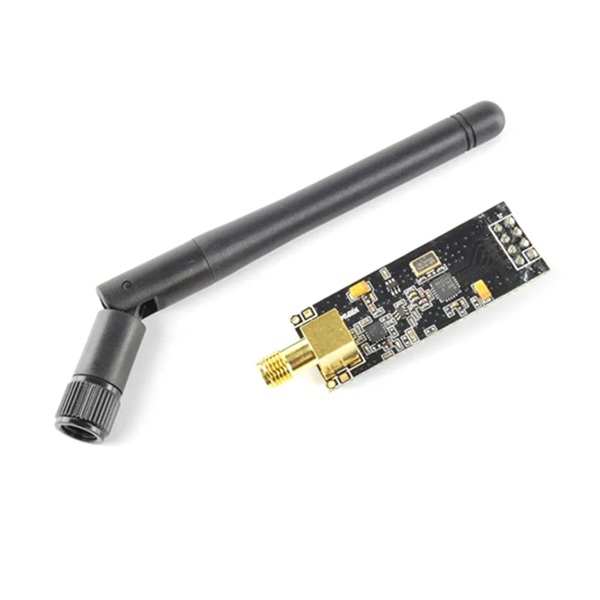

NRF24L01+PA+LNA Wireless Module 1100 Meters
Key Features & Benefits
- Extended Range: Achieves up to 1100 meters (line-of-sight) at lower data rates (250Kbps) by adding PA (power amplification) and LNA (low-noise amplification) to the base NRF24L01+ chip.
- High Performance: Features +20dBm transmit power and excellent receiving sensitivity (down to -104dBm) for reliable links.
- 2.4GHz ISM Band: Operates in the license-free global ISM band, supporting 125 channels for frequency hopping and multi-point communication.
- SPI Interface: Easily configured and controlled by microcontrollers (Arduino, ARM, PIC, STM32) using a simple 4-wire SPI connection.
- Low Power: Supports power-down and standby modes, with auto-acknowledge/retransmit features for efficient battery use.
How it Works
- Base Chip: The core is the Nordic Semiconductor’s NRF24L01+, a robust 2.4GHz transceiver.
- PA/LNA Integration: The “+PA+LNA” versions add a Power Amplifier (PA) for boosting transmission power and a Low Noise Amplifier (LNA) for improving weak signal reception, dramatically extending range.
- Antenna: An external antenna (often a dipole or SMA) further enhances signal transmission and reception.
- Microcontroller Control: Your Arduino or MCU sends data and commands via SPI, and the module handles the RF transmission/reception.
Common Uses
- Remote Sensors & Monitoring
- Home Automation
- Robotics & Drones (long-range control)
- Wireless Data Logging
