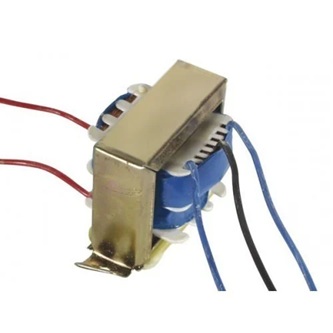

Step-Down Transformer (Full-Wave Rectification)

A step-down transformer with full-wave rectification is a power conversion system that reduces high-voltage AC and converts both halves of the AC cycle into a smooth, unidirectional direct current (DC). By utilizing the entire waveform, it provides significantly higher efficiency and a steadier power supply than half-wave versions.

Key Features

• Dual-Cycle Conversion: Unlike half-wave units, this setup captures both the positive and negative peaks of the AC signal, resulting in a continuous flow of power.
• Superior Efficiency: Boasts a rectification efficiency of approximately 81.2% (double that of half-wave), meaning less energy is wasted as heat.
• Reduced Ripple: The output has smaller voltage fluctuations, making it easier to “smooth” into pure DC using simple capacitors.
• Higher Output Power: Delivers a higher average DC voltage and current for the same input compared to half-wave designs.

Ideal For:

• Consumer Electronics: Essential for phone chargers, laptop adapters, and home audio systems.
• Power Supplies: Used in Bench DC power supplies where a steady, reliable voltage is required.
• Household Appliances: Powering LED TVs, radios, and gaming consoles that require clean DC energy.
• Battery Charging: High-speed charging for automotive and industrial battery banks.
